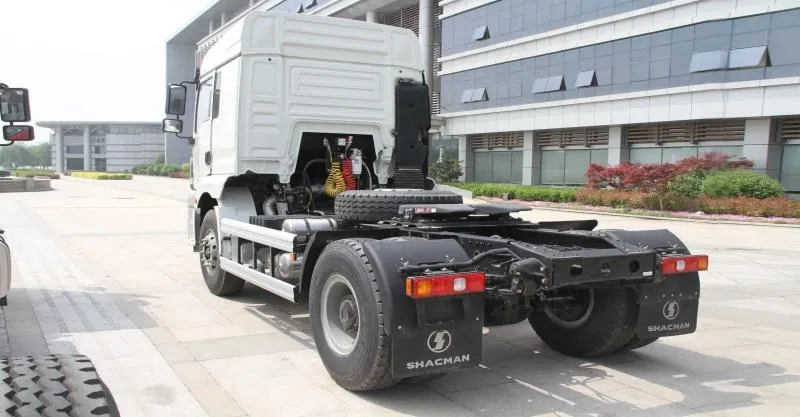

The H3000 narrow body cab is meticulously engineered for intercity transportation and construction applications. Its exceptional maneuverability significantly boosts productivity by facilitating seamless navigation through urban landscapes, thereby ensuring the consistent and efficient completion of transport duties.
Specification
| Transport type | Commodity transportation logistics (Standard transport) | |
| Logistics type | Food, fruit, wood, household appliances and other department stores | |
| Drive | 4X2 | |
| Max weight(t) | ≤50 | |
| Max speed(km/h) | 100 | |
| Loaded speed | 60~75 | |
| Vehicle model | SX4185HL361 | |
| Engine | WP7.270E31 | |
| Emission standard | Euro II | |
| Displacement | 7.14L | |
| Rated Output | 199KW | |
| Max. torque | 1100N.m | |
| Transmission | RTD11509C | |
| Clutch | 430 | |
| Frame | 850X270 (8+5) | |
| Front axle | MAN 7.5T | |
| Rear axle | 13T STR4.266 | |
| Tire | 12.00R22.5 | |
| Front Suspension | Little leaf springs | |
| Rear Suspension | Little leaf springs | |
| Battery | 165Ah | |
| Fuel | Diesel | |
| Capacity of the fuel tank | 400L | |
| Dimensions | 6080X2490X3560 | |
| Wheelbase | 3600 | |
| The fifth wheel | 90 type(lightweight) | |
| Approach/departure angle | 22/66 | |
| Max grad ability | 20 | |
| Cab | Type | MAN H3000,Lengthened Flat Roof |
| Equipment | ♦ Rear window♦ Sun roof♦ Four point air suspension♦ Air cushioned drivers seat♦ radio with Mp3 player♦ Automated air conditioning | |
| Optional | ♦ Central locking♦ Full vehicle WABCO valve | |
VIDEO
440HP of robust power
The H3000 is powered by engines from WEICHAI and CUMMINS, renowned global leaders in diesel engine manufacturing, offering up to 440HP of robust power.
FAST gearbox
FAST gearbox, provided by the world’s preeminent transmission supplier, ensures an optimal balance between economic fuel consumption and dependable performance.
HANDE axle
HANDE axle incorporates state-of-the-art technology, boasting exceptional load-bearing capabilities and high-torque output, underpinning the vehicle’s strong performance.
Comprehensive upgrade
Equipped with 700-liter aluminum alloy fuel tank, the H3000S not only hauls more but goes further. The vehicle is equipped with side panel protection, water tank protection and oil pan protection. A fuel filter element is added to effectively protect the key assemblies of the vehicle。
