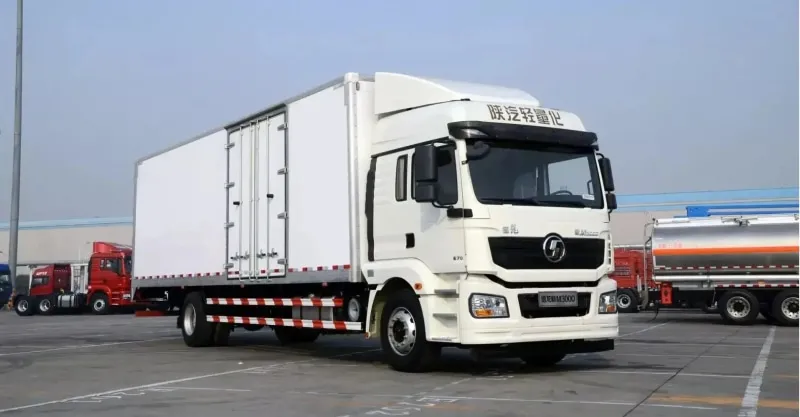

The H3000 narrow body cab is meticulously engineered for intercity transportation and construction applications. Its exceptional maneuverability significantly boosts productivity by facilitating seamless navigation through urban landscapes, thereby ensuring the consistent and efficient completion of transport duties.
Specification
| Transport type | Complex Transport | |
| Logistics type | Daily industrial products and food | |
| Drive | 4X2 | |
| Distance | ≤300km | |
| Max speed(km/h) | 90 | |
| Road Type | Paved Roads | |
| Max Weight(T) | ≤20 | |
| Vehicle model | SX1165MF461 | |
| Engine | WP6.180E32 | |
| Emission standard | Euro II | |
| Displacement | 6.75L | |
| Rated Output | 132KW | |
| Max. torque | 680N.m | |
| Transmission | 8JS85E | |
| Clutch | 430 | |
| Frame | 850X270 (8+4) | |
| Front axle | MAN 5.5T | |
| Rear axle | 13T STR4.769 | |
| Tire | 11.00R20 | |
| Front Suspension | Multi- leaf springs | |
| Rear Suspension | Multi- leaf springs | |
| Battery | 165Ah | |
| Fuel | Diesel | |
| Capacity of the fuel tank | 400L | |
| Dimensions | 8575X2490X3450 | |
| Wheelbase | 4600 | |
| After the suspension | 2100 | |
| Approach/departure angle | 18/12 | |
| Max grad ability | 34 | |
| Cab | Type | MAN H3000,Mid Lengthened Flat Roof |
| Equipment | ♦ Rear window♦ Manual sunroof♦ Hydraulic driver seat with seat belts♦ Hydraulic suspension of cab♦ Automated air conditioning♦ Electric window♦ Radio with MP3 player | |
| Optional | ♦Air cushioned drivers seal♦ Full vehicle WABCO valve♦ Central locking♦ 11.00R20 | |
VIDEO
440HP of robust power
The H3000 is powered by engines from WEICHAI and CUMMINS, renowned global leaders in diesel engine manufacturing, offering up to 440HP of robust power.
FAST gearbox
FAST gearbox, provided by the world’s preeminent transmission supplier, ensures an optimal balance between economic fuel consumption and dependable performance.
HANDE axle
HANDE axle incorporates state-of-the-art technology, boasting exceptional load-bearing capabilities and high-torque output, underpinning the vehicle’s strong performance.
Comprehensive upgrade
Equipped with 700-liter aluminum alloy fuel tank, the H3000S not only hauls more but goes further. The vehicle is equipped with side panel protection, water tank protection and oil pan protection. A fuel filter element is added to effectively protect the key assemblies of the vehicle。
