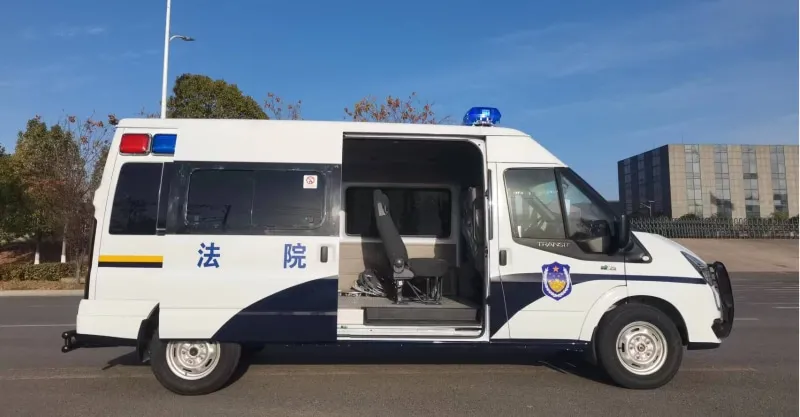

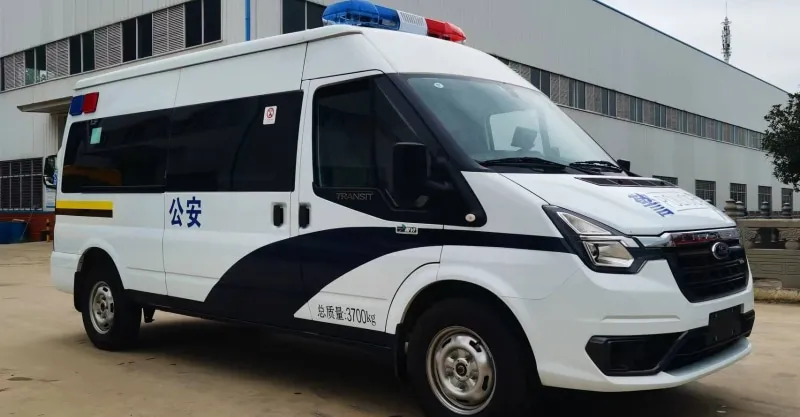

Engineered for maximum security, the Foton Toano Prison Van features a reinforced stainless steel cage, surveillance system, and the legendary Cummins ISF 2.8 engine, ensuring safe and non-stop transfer missions.
Specification
| Engine Model | Cummins ISF 2.8s5129T (Turbo Diesel) |
| Max Power / Torque | 120 kW (163 HP) / 360 N·m |
| Dimensions (LxWxH) | 5,990 x 2,000 x 2,415 mm |
| Wheelbase | 3,750 mm (Long Wheelbase) |
| Transmission | 6-Speed Manual (Getrag) |
| Seating Capacity | Customizable (Standard: 2+2+6 to 2+2+10) |
| Fuel Tank Capacity | 80 Liters |
| Emission Standard | Euro V / Euro VI (Depending on market) |
| Braking System | ABS + EBD (4-Wheel Disc Brake) |
Reinforced Partition:
Equipped with a floor-to-ceiling stainless steel partition wall to strictly separate the driver's cabin from the detainee area, preventing any physical contact.
Window Protection:

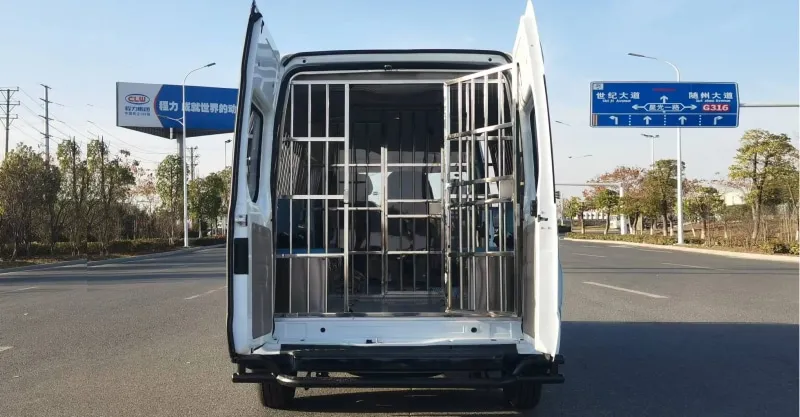

All rear windows are fitted with high-strength steel mesh and blackout film to prevent escape attempts and protect detainee privacy.
Specialized Locking System:
Features a centralized double-locking mechanism on rear doors, controlled only from the driver's console.
Cummins ISF 2.8 Engine:
Powered by the world-renowned Cummins diesel engine (120kW / 360Nm), providing sufficient torque for heavy loads and high-speed pursuits if necessary.
German Engineering Chassis:
Built on a Daimler-standard monocoque body with 60% high-strength steel, offering superior crash safety and stability.
Non-Stop Performance:
Designed for 500,000 km without major overhaul, ensuring high attendance rates for police departments.
Real-time Monitoring:
Integrated with 360° interior CCTV cameras and a DVR system, allowing the co-driver to monitor the detainee area in real-time.
Warning System:
Pre-installed with a long-row roof warning light siren and PA system (Public Address) for traffic clearing.
Configurable Layout:
Seating can be customized (e.g., 6-10 prisoners + 2 guards) with handcuff anchor points beneath seats.
