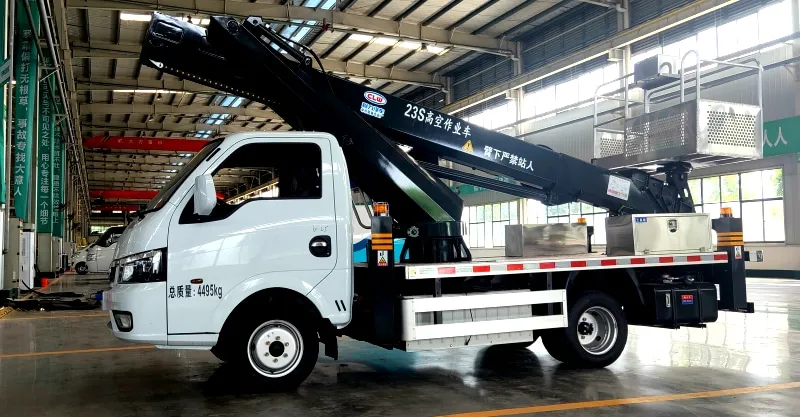

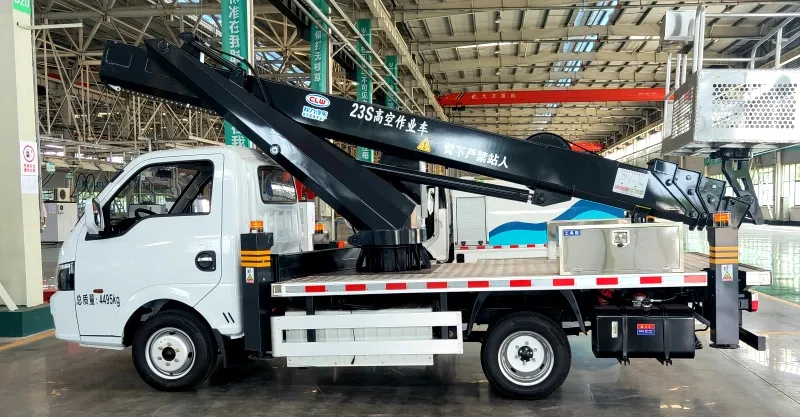

The Foton Truck Mate Single Cab Aerial Platform Truck combines an ultra-compact chassis with a high-strength hydraulic boom, delivering unmatched maneuverability and safety for narrow-street municipal and electrical maintenance.
Specification
| Model | Foton Truck Mate (TM) Single Cab Aerial Platform |
| Cabin Type | Single Cabin (单排), Left Hand Drive (LHD) / RHD optional |
| Engine | 1.5L Petrol Engine (DAM15R) |
| Max Output | 112 HP (82 kW) |
| Transmission | 5-Speed Manual (5MT) |
| Fuel Type | Petrol / Gasoline (汽油) |
| Emission Standard | Euro IV / Euro V / Euro VI (depending on region) |
| Seats | 2 Seats |
| Overall Dimensions | Approx. 5,200 x 1,800 x 2,700 mm (Varies by boom type) |
| Max Working Height | 12m - 14m (Standard modification) |
| Bucket Capacity | 200 kg (Typically 2 persons) |
| Outriggers | Hydraulic Front & Rear Outriggers |
Navigating tight city streets or residential alleys is a major headache for heavy-duty lifts. The Foton Truck Mate (TM) single-cab chassis solves this by offering an ultra-compact turning radius without compromising the stability of the aerial bucket. It is the ultimate highly-mobile solution for urban maintenance teams.
Optimal Working Height:
Equipped with a precision-engineered hydraulic boom (typically up to 12m-14m reach), allowing operators to easily access standard streetlights and utility poles.
High-Capacity Safety Bucket:
The reinforced fiberglass bucket safely accommodates up to 200kg (operators plus essential tools), featuring high-voltage insulation for electrical hazards.
Hydraulic Outrigger System:
Features independent hydraulic outriggers (H-type or V-type) with a wide span, ensuring a rock-solid base even on uneven terrain.
Efficient Powertrain:
Powered by a proven 1.5L petrol engine delivering 112 HP, paired with a 5-speed manual transmission for excellent fuel economy and reliable PTO (Power Take-Off).
Municipal Light Maintenance:
Perfect for quick streetlamp bulb replacements and repairs in tight urban lanes.
Telecom & Power Grids:
The compact size and insulated bucket make it incredibly safe for low-to-medium voltage cable works.
Landscaping & Tree Trimming:
Easy to maneuver in parks and residential areas without destroying the pavement with excessive vehicle weight.
