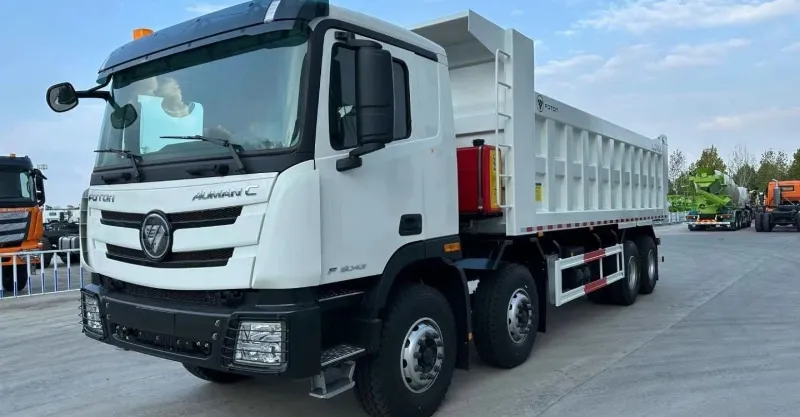

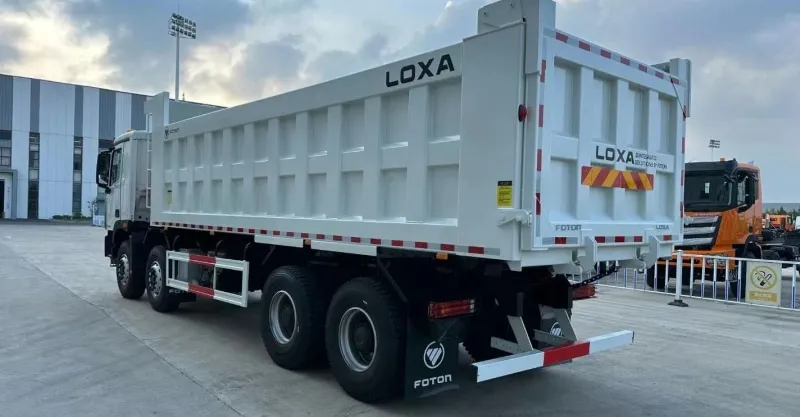

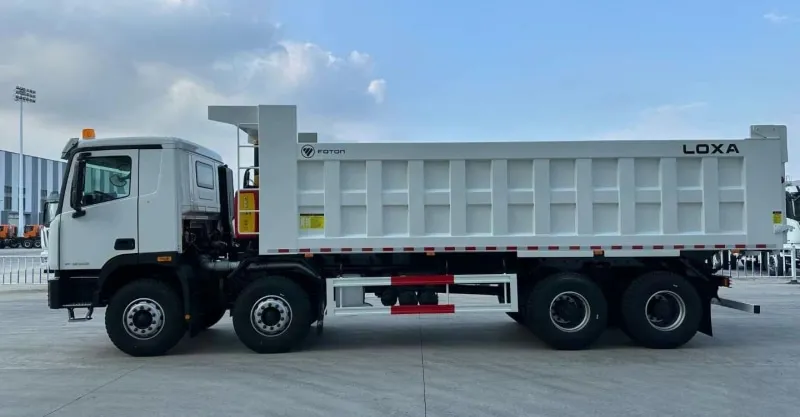

Foton Auman GTL-E 8x4 Dump Truck | 40T-60T Heavy Duty Tipper
Maximize your project uptime with the Foton GTL-E 8x4, a heavy-duty powerhouse designed to deliver massive 60-ton payloads with uncompromising reliability and safety.
Maximize your project uptime with the Foton GTL-E 8x4, a heavy-duty powerhouse designed to deliver massive 60-ton payloads with uncompromising reliability and safety.
Specification
| Engine | Cummins ISGe / X12 (400hp - 470hp) |
| Drive Type | 8x4 |
| Payload Capacity | 40,000kg - 60,000kg |
| Overall Dimensions | Approx. 10418 x 2490 x 3400 mm |
| Transmission | Fast 12-Speed Manual / AMT optional |
| Axles | 16T rear axles (reduction ratio ~4.76/5.92) |
| Tires | 12.00R20 or 12.00R22.5 (12+1 pcs) |
| Hydraulic Lift | HYVA Front Lift |
Built for large-scale earthmoving, the Foton GTL-E 8x4 features a multi-axle configuration that distributes weight effectively, allowing for immense payload capacities up to 60 tons without sacrificing structural integrity or chassis lifespan.
High-Torque Powerhouse:
Driven by robust 400hp-470hp engines, providing massive 2100+ Nm torque to conquer steep inclines easily.
Reinforced Double-Layer Frame:
A solid, torsion-resistant double-layer alloy steel frame built specifically to handle heavy-duty bending in off-road environments.
Advanced iBrake Technology:
Foton's engine braking system provides superior downhill control, reducing wear on standard brake pads and eliminating the need for external water tanks.
High-Efficiency Hydraulics: Equipped with premium front-lifting hydraulic cylinders (like HYVA) for fast, stable, and safe cargo unloading.
Perfect for large mining operations, major highway earthworks, and heavy-duty industrial material transport.
