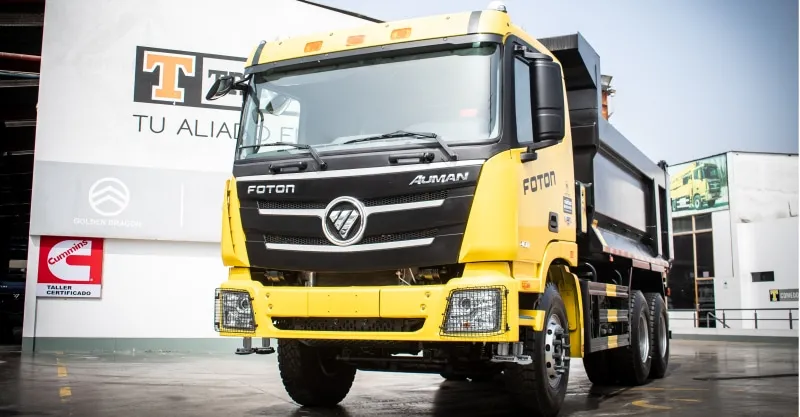

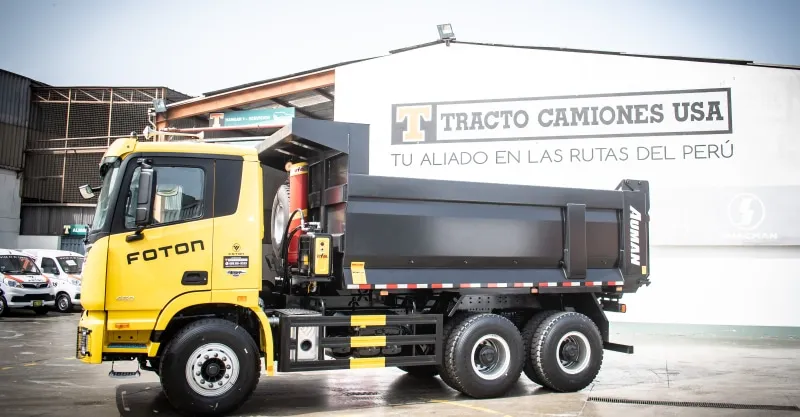

Conquer the harshest quarry environments with the Foton Auman GTL 6x4 Mining Dump Truck. Featuring a reinforced U-shape rock body and high-torque output for unstoppable off-road performance.
Specification
| Engine Model | Cummins ISGe / Weichai High-Torque Series |
| Horsepower | 375 HP - 430 HP |
| Torque | Up to 2000 - 2100 Nm |
| Box Material | High-Tensile Manganese Steel (U-Shape/Rock Body) |
| Box Thickness | Floor 8mm-10mm / Side 6mm-8mm (Customizable) |
| Rear Axles | 2 x 16000kg Hub-reduction Axles |
| Tires | 12.00R20 or 315/80R22.5 Mining Tread |
| Lifting System | Front Hydraulic Cylinder |
A highly resilient, purpose-built mining box paired with heavy-duty hub-reduction axles designed exclusively for high-impact, severe off-road survival.

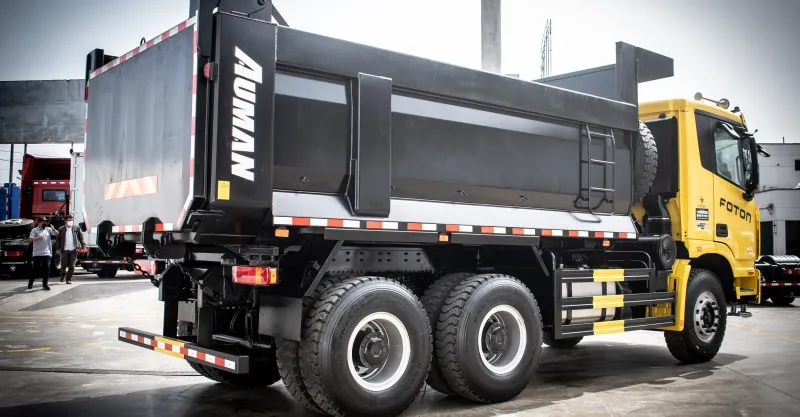

Reinforced Mining Box (Rock Body)Constructed with ultra-thick high-tensile manganese steel, the U-shaped mining box absorbs massive impacts from dropped boulders and abrasive ores. Its unique shape prevents material from sticking in the corners, ensuring a clean and rapid discharge every time.
High-Torque Output:
Tuned for massive low-end torque (up to 2100 Nm) to easily climb steep, unpaved mining gradients under full load.
Hub-Reduction Rear Axles:
Features 16-ton double reduction drive axles (central and hub) providing superior ground clearance and drivetrain protection against rocky terrain.
Enhanced Hydraulic Lifting:
Upgraded front-top hydraulic cylinders ensure stable and safe tipping even on uneven, sloped ground.
Open-Pit Mining:
Enduring continuous loading of heavy iron ore, coal, or copper.
Quarries & Aggregates:
Handling the impact of large, jagged rocks directly from excavators.
Severe Off-Road Construction:
Navigating muddy, rutted, or extreme gradient terrains where standard trucks would fail.
