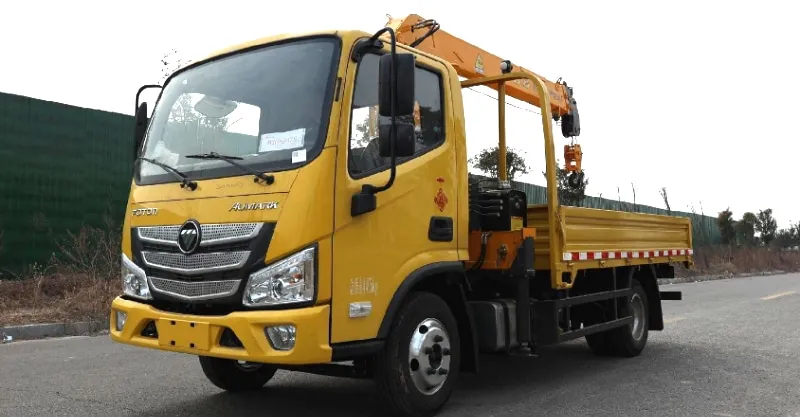

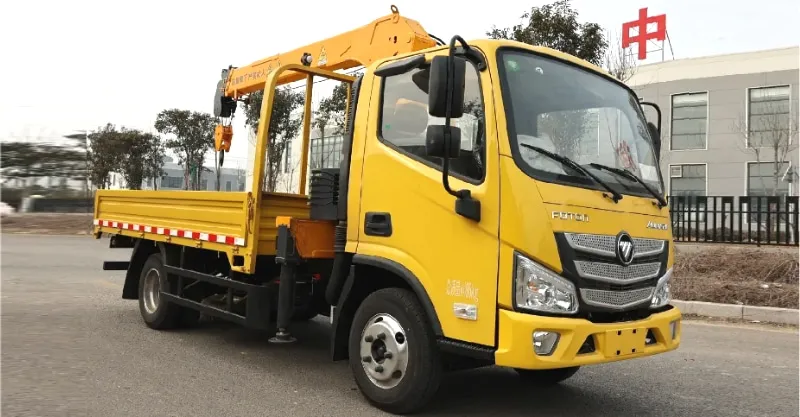

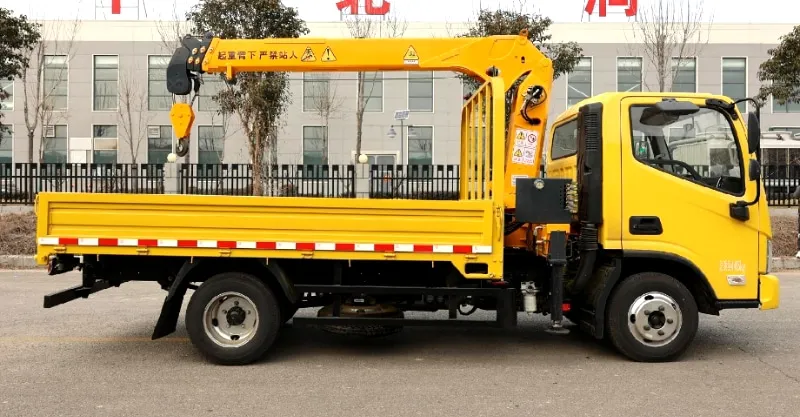

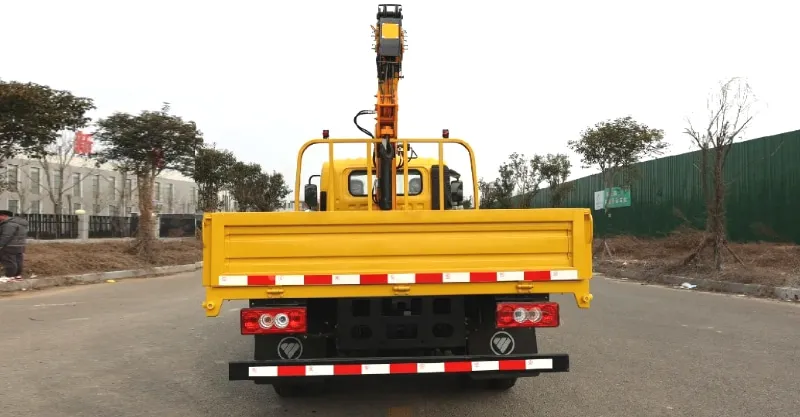

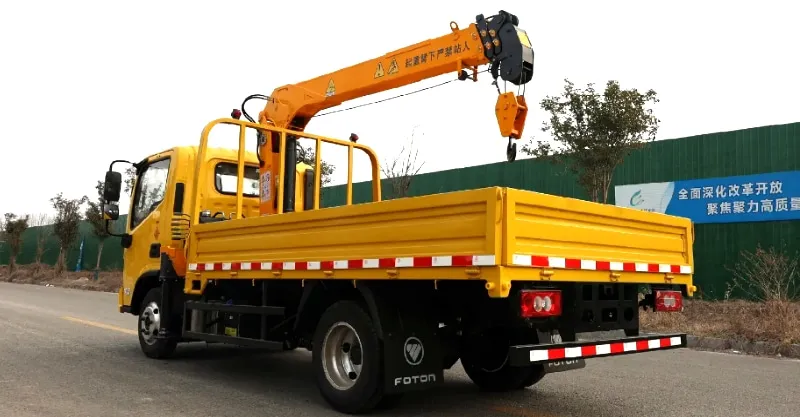

Foton Aumark E Truck with Crane | 3.2T/4T Knuckle Boom Crane
Versatile Foton Aumark E boom truck featuring a powerful telescopic or knuckle boom crane. Your ultimate all-in-one solution for heavy lifting and urban logistics.
Versatile Foton Aumark E boom truck featuring a powerful telescopic or knuckle boom crane. Your ultimate all-in-one solution for heavy lifting and urban logistics.
Specification
| Chassis Model | Foton Aumark E |
| Crane Lifting Capacity | 3.2 Tons - 4 Tons |
| Crane Type | Telescopic (Straight) / Knuckle (Folding) Boom |
| Engine | Cummins ISF2.8 / 3.8L Diesel |
| Cargo Box Length | Approx. 4,200mm - 5,100mm |
| Outriggers | Front Hydraulic (Rear optional) |
| Transmission | 5/6-Speed Manual |
| Wheelbase | 3360mm - 3800mm |
It eliminates the need for separate lifting and transport vehicles. By integrating a reinforced Aumark E chassis with a high-performance hydraulic crane, it significantly reduces operational costs and boosts site efficiency.
High-Capacity Crane:
Options for 3.2-ton to 4-ton straight or folding boom cranes (compatible with top brands like XCMG or Palfinger).
Reinforced Chassis:
Features a double-layered high-strength steel frame to withstand immense stress during lifting operations.
Hydraulic Outriggers:
Equipped with H-type hydraulic stabilizing legs for enhanced safety on uneven terrains.
Large Cargo Box:
Standard rugged cargo bed with drop-sides, accommodating a wide variety of construction materials.
Ideal for urban construction material delivery, landscaping, municipal maintenance, and heavy equipment relocation.
