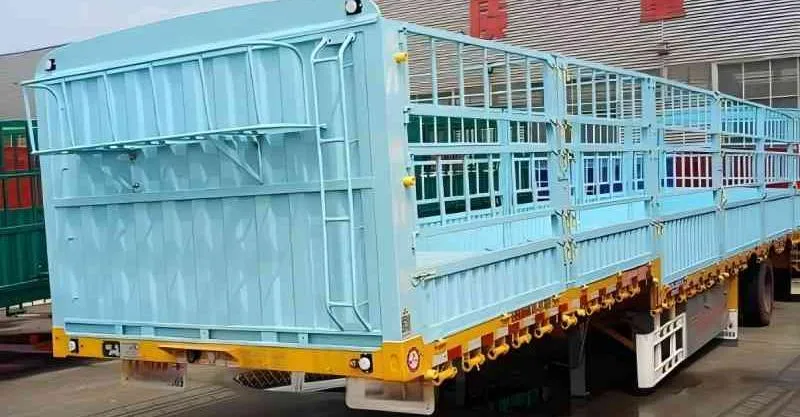

New Fence Cargo Trailer
New Fence Cargo Trailer
New Fence Cargo Trailer
New Fence Cargo Trailer
New Fence Cargo Trailer
New Fence Cargo Trailer
New Fence Cargo Trailer
New Fence Cargo Trailer

New Fence Cargo Trailer

The design of the livestock transport truck trailer makes the loading and unloading goods extremely convenient. The fence on both sides of the livestock transport truck trailer and the rear can be easily opened to form a completely open platform, which is convenient for the fast loading and unloading of the goods. This design of livestock transport truck trailer is particularly suitable for frequent loading and unloading goods, reducing loading and unloading time and cost, and improving the overall transportation efficiency. Fence semi trailer is made of high-intensity materials to ensure that the vehicle structure is strong and durable. This solid structure of fence semi trailer can withstand long -term overload transportation and extend the life of the vehicle.

Specification

Fence semi trailer is made of high-strength materials to ensure strong and durable vehicle structure.This solid structure can withstand long -term overload transportation and extend the life of the vehicle. The fence semi trailer's framework is carefully designed to ensure that it remains stable when to withstand the maximum load. In addition, the strong structure of the stakes trailer also helps reduce maintenance costs, because a solid structure means less maintenance and longer service life. In addition, the stakes trailer is also equipped with reinforced and reinforced parts to further improve the stability of the structure.

Dimension12500mm*2500mm*3050mm(1500mm sidewall high)
Load Capacity(T)≤60T
Axle3 axles, 13T/16T, FUWA/BPW Brand
Rim9.00-22.5 9.75-22.5(Specially designed and for oversea markets)
Tire12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
SuspensionMechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets)
Spring leaf90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets)
King pinJOST brand 2.0 or 3.5inch(bolted or welded type)
Support legJOST brand D200T or Chinese brand 28Tons(Double speed)
Main beamHeight: 500mm Upper Plate: 14mm Middle Plate: 8mm

Bottom Plate is 16mm; Material: Q345B Steel
Side beam16mm or 18mm steel channel(material: Q235steel)
Brake chamberWABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks
ABSOptional
Twist LocksFour, Eight or Twelve pieces(lifting type or twist screw type)
ValveWABCO valve
Tool box1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
