Usage Scenarios:Standard load type for muck transportation
Maximum horsepower:360
Drive type:8X4
Wheelbase:2000+2425+1350
Motor:A8.5.360(1800N•m)(Legend）
Gearbox:12JSDX240TA iron (Q)
Specification

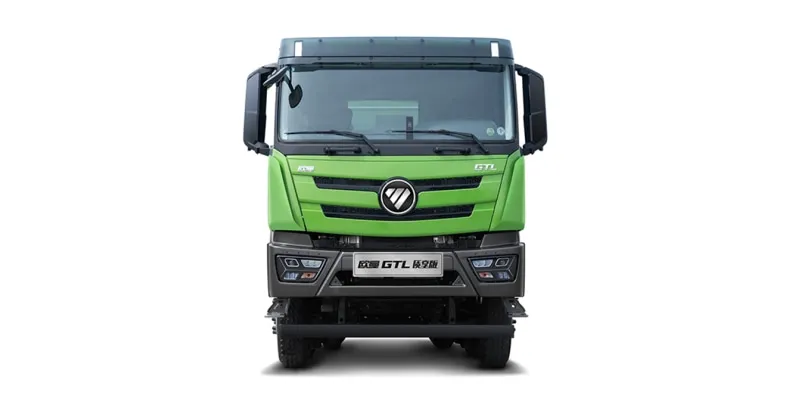

| Vehicle type information | Auman GTL Quality Edition 8.5L 360 horsepower 8×4 fuel dump truck (BJ3319Y6GRS-01) chassis | Manufacturer's guide price (yuan) | 321200.00 yuan |
| Body (cab table) | GTL Premium Edition | Drive type | 8×4 |
| Wheelbase (mm) | 2000+2425+1350 | Body length | 2280 |
| Body width | 2500 | Vehicle height | 3280/3650 |
| version | 24 models | GCW (Mass Loaded) | 16670(Kg) |
| Department (tonnage series) | 31 | Applications (Segments) | Standard load type for muck transportation |
| Emission standards | / | Motor/engine model | A8.5.360(1800N•m)(Legend） |
| Motor/engine brand | Fortcan | Number of cylinders | Six-cylinder |
| Cylinder arrangement | In-line | Maximum output power | 265kW |
| Maximum torque | 1800N•m | Maximum torque speed | 1000-1400 |
| Rated speed | 1900 | Fuel Type (Fuel Type) | fuel oil |
| Engine displacement (ml) / speed | 8500 | Engine Emissions (Emission Standards) | Country VI. |
| Motor type | / | Peak power | / |
| Rated power | / | Motor/engine maximum horsepower (Ps)/horsepower range | 360 |
| Battery brand | / | Battery type | / |
| Battery capacity | / | Charging method | / |
| Transmission model | 12JSDX240TA iron (Q) | Transmission brand | Fast Priest |
| Gear shifting method | Manual | Number of gears | 12 |
| Housing Material | iron | Tire Specifications (Type) | 11.00R20; 18PR/12R22.5; 18PR |
| Number of tires | 13 | Fuel tank capacity | 350L |
| Fuel tank/gas tank material | Aluminum alloy | Gas tank capacity | —— |
| Fuel tank heating | not | Rear axle description (rear axle form) | Two-stage reduction axle |
| Rear axle model F | 270 bridges | The permissible load on the rear axle | 13t |
| Rear axle ratio | 5.92/6.73 | Steering machine | AM90L-S/AM90H-VSE |
| Frame size | 286×90×（8+4） | Front axle description | Ordinary front axle |
| The permissible load on the front axle | 5t | Ratio | —— |
| Suspension form | Leaf springs | Number of springs | 10/12/12 |
| saddle | —— | Vehicle braking type | Pneumatic braking |
| handbrake | Manual | Front wheel brakes | Drum pose |
| Rear wheel brakes | Drum pose | Hydraulic retarder | not |
| Vehicle announcement | BJ3319Y6GRS-01 | Vehicle type | Engineering |
| Vehicle origin | Huairou, Beijing | Tops branding | Hongchang Tianma / Ressa / Chitian / CIMC Huajun / Juntong |
| Tank / box dimensions | 5600,5800,6000×2300,2350×600,700,800,900,950,1000,1050,1100,1150,1200,1250,1300,1350,1400,1450,1500 | Tank/box volume | 7.72~21.15m³ |
| Cargo box inner size(mm) | / | Other optional devices | / |
