Usage Scenarios:Goods: clean water (cleaning truck), domestic garbage (cleaning truck), sewage water and riverbed sewage (cleaning truck) Distance: ≤50km Working conditions: urban road
Maximum horsepower:350
Drive type:6X4
Wheelbase:4400+1350
Motor:YCK08350-60
Gearbox:9JSD150TA(Iron) (Flange without power take-off, spline power take-off)
Specification

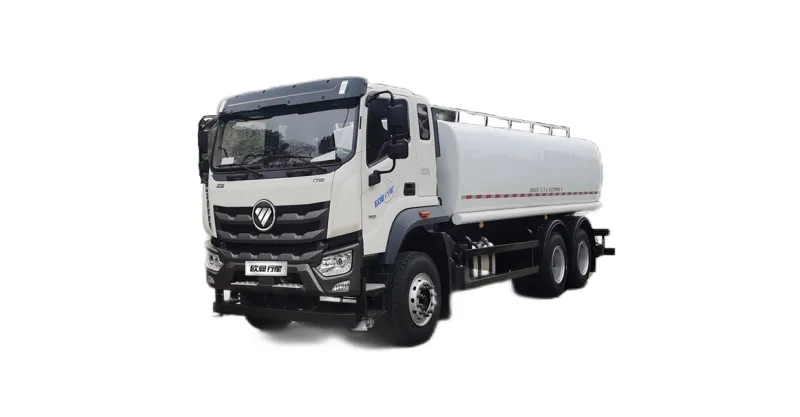

| Vehicle type information | Auman Planetary 490 horsepower 6×4 traditional sanitation truck chassis | Manufacturer's guide price (yuan) | 281700.00 yuan |
| Model features | It is a special vehicle used for urban appearance and cleaning | use | Goods: clean water (cleaning vehicles), domestic garbage (cleaning vehicles), sewage water and riverbed sewage (cleaning vehicles) Distance: ≤50km Working conditions: urban roads Commonly used vehicle speed: 40-60km/h |
| Model platform | planet | Market segments | Cleaning trucks, cleaning trucks, cleaning trucks |
| Vehicle announcement model | / | High/flat top | Flattened |
| Drive form | 6×4 | wheelbase | 4400+1350 |
| Body size | 2200 | Front/rear overhang | 1320/2365 |
| Rated load | / | Vehicle weight | / |
| Total mass | 25000 | Top speed | 89 |
| Type of energy | tradition | brand | Yuchai |
| Engine model | YCK08350-60 | Number of cylinders | 6 cylinders |
| Maximum output power | 257 | Maximum horsepower | 350 |
| Emissions (emissions) | 7698 | Emission standards | Country VI. |
| Rated speed | 2200 | Maximum torque | 1450 |
| Maximum torque speed | 1300-1500 | cab | Row and a half cab |
| The main driver's seat form | Airbag seats | Gearbox (gearbox model) | 9JSD150TA(Iron) (Flange without power take-off, spline power take-off) |
| Transmission (number of gears) | 9 gears | Shift form | MT |
| Chassis brand | Auman | Chassis series | planet |
| Chassis model | BJ1251Y6DPS-01 | Rear axle description (rear axle form) | Single-minus rear axle |
| Rear axle model F | 435 | The permissible load on the rear axle | 10T |
| Rear axle ratio | 4.444 to 4.111 | Steering machine | Domestic 117 bore steering gear |
| Frame size | 286/286×80×(8+4) | Front axle description | Self-adjusting arm - ABS - drum brake - ordinary wheel |
| The permissible load on the front axle | 6.5T | Ratio | / |
| Suspension form | Leaf springs | Number of springs | 3/4 |
| saddle | / | Number of tires | 10+1 |
| Tire specifications | 11.00R20 (steel) to 12R22.5 (steel) | Fuel tank (volume/material)/Power battery (power/energy type/brand) | 260L/double suction port |
| Vehicle announcement | / | Vehicle origin | / |
| Tops branding | / | Tank / box dimensions | / |
| Tank/box volume | / | Other optional devices | With power take-off (type: lower left side + inner spline or flange output), daytime running lights, airbag damping driver's seat, reversing radar, middle seat, blind spot detection BSD, optional 12R22.5 18PR, ETC equipment, LED headlights, [multi-functional, electric, electric flip, no 360, 7-inch instrument, reversing image (vehicle optional configuration package 1)], [multi-functional, electric, electric flip, with 360, 7-inch instrument, MP5 (vehicle optional configuration package 2)] |
