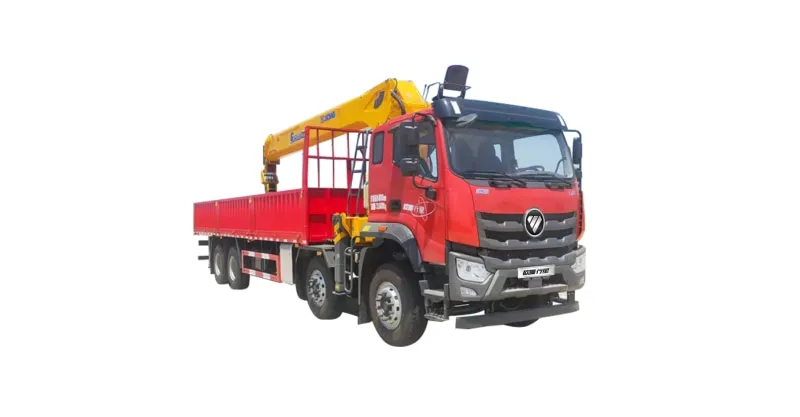

Auman Planetary 350 hp 8×4 traditional truck mounted crane chassis
Auman Planetary 350 hp 8×4 traditional truck mounted crane chassis

Auman Planetary 350 hp 8×4 traditional truck mounted crane chassis

Usage Scenarios:Goods: building materials, machinery and equipment, timber, seedlings, etc. Distance: 200km Working conditions: national highways, provincial roads, urban roads are supplemented by common speed

Maximum horsepower:350

Drive type:8X4

Wheelbase:2100+4575+1350

Motor:YCK08350-60

Gearbox:10JSD160TB(Fe) (Flange power take-off)


Specification

Vehicle type informationAuman Planetary 350 hp 8×4 traditional truck mounted crane chassisManufacturer's guide price (yuan)297200.00 yuan
Model featuresThe equipment that realizes the lifting, slewing and lifting of goods through hydraulic lifting and telescopic systems is usually assembled on trucks.useGoods: building materials, machinery and equipment, timber, seedlings, etc. Distance: ≤200km Working conditions: mainly national highways and provincial roads, supplemented by urban roads Common speed: 60-80km/h
Model platformplanetMarket segmentsBoom crane 12T/14T/16T
Vehicle announcement model/High/flat topFlattened
Drive form8×4wheelbase2100+4575+1350
Body size2200Front/rear overhang1320/2485
Rated load/Vehicle weight/
Total mass31000Top speed89
Type of energytraditionbrandYuchai
Engine modelYCK08350-60Number of cylinders6 cylinders
Maximum output power257Maximum horsepower350
Emissions (emissions)7698Emission standardsCountry VI.
Rated speed2200Maximum torque1450
Maximum torque speed1300-1500cabRow and a half cab
The main driver's seat formAirbag seatsGearbox (gearbox model)10JSD160TB(Fe) (Flange power take-off)
Transmission (number of gears)10 gearsShift formMT
Chassis brandAumanChassis seriesplanet
Chassis modelBJ5311JSQY6GRS-01Rear axle description (rear axle form)Single-minus rear axle
Rear axle model F459The permissible load on the rear axle13T
Rear axle ratio5.286 to 4.625 to 4.111Steering machineAM90H-VSE
Frame size305×80×(8+6+6)Front axle descriptionSelf-adjusting arm - ABS - drum brake - ordinary wheel
The permissible load on the front axle6.5TRatio/
Suspension formLeaf springsNumber of springs10/10/10
saddle/Number of tires12+1
Tire specifications11.00R20(Steel)Fuel tank (volume/material)/Power battery (power/energy type/brand)350L
Vehicle announcement/Vehicle origin/
Tops branding/Tank / box dimensions/
Tank/box volume/Other optional devicesMulti-function steering wheel, 4.845, 5.571 speed ratio, electric adjustment, electric heating and defrosting exterior mirrors, 360 panoramic surround view, 7-inch color screen LCD instrument, blind spot detection BSD, optional package 1 (7-inch MP5 + reversing image + Bluetooth function + navigation + no steering wheel CAN control), optional package 2 (7-inch MP5 + Bluetooth function + navigation).
