Usage Scenarios:Cargo: chemicals, refined oil, explosives (fireworks, explosives, etc.), flammable solids and miscellaneous dangerous goods, etc. Distance: ≤200km Working conditions:
Maximum horsepower:245
Drive type:4X2
Wheelbase:5150
Motor:YCS06245-60A
Gearbox:8JS95TE-C (iron)
Specification

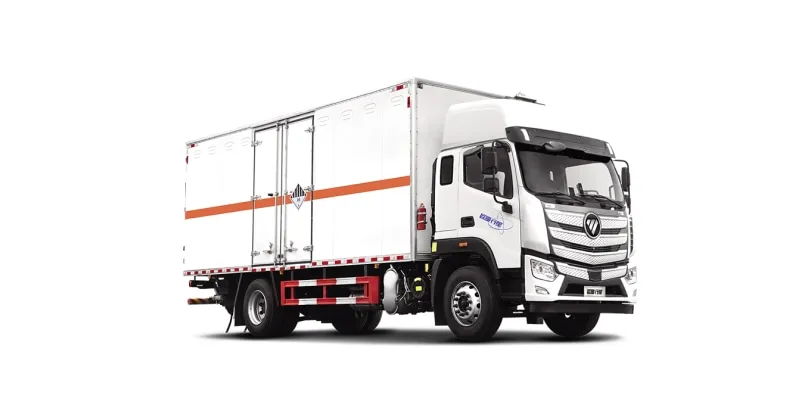

| Vehicle type information | Auman Planetary 245 horsepower 4×2 traditional dangerous goods single car chassis | Manufacturer's guide price (yuan) | 240500.00 yuan |
| Model features | Dangerous goods transport trucks and semi-trailer and semi-trailer car trains carrying dangerous goods. | use | Goods: chemicals, refined oil, explosives (fireworks, explosives, etc.), flammable solids and miscellaneous dangerous goods, etc. Distance: ≤200km Working conditions: high-speed, supplemented by national highways and provincial highways Commonly used vehicle speed: 60-80km/h |
| Model platform | planet | Market segments | Box dangerous goods + explosives |
| Vehicle announcement model | / | High/flat top | Flat top, high top |
| Drive form | 4×2 | wheelbase | 5150 |
| Body size | 2200 | Front/rear overhang | 1270/2515 |
| Rated load | / | Vehicle weight | / |
| Total mass | 18000 | Top speed | 80 |
| Type of energy | tradition | brand | Yuchai |
| Engine model | YCS06245-60A | Number of cylinders | 6 cylinders |
| Maximum output power | 180 | Maximum horsepower | 245 |
| Emissions (emissions) | 6234 | Emission standards | 6234 |
| Rated speed | 2300 | Maximum torque | 950 |
| Maximum torque speed | 1200-1700 | cab | Row and a half cab |
| The main driver's seat form | Airbag seats | Gearbox (gearbox model) | 8JS95TE-C (iron) |
| Transmission (number of gears) | 8 gears | Shift form | MT |
| Chassis brand | Auman | Chassis series | planet |
| Chassis model | BJ1181Y6AKS-02 | Rear axle description (rear axle form) | Single-minus rear axle |
| Rear axle model F | 416 | The permissible load on the rear axle | 9T |
| Rear axle ratio | 4.33 | Steering machine | AM65L |
| Frame size | 250×75×(6+4) | Front axle description | Self-adjusting arm - EBS - disc brake - normal wheel |
| The permissible load on the front axle | 4.2T | Ratio | / |
| Suspension form | Air suspension | Number of springs | 10/- |
| saddle | / | Number of tires | 6+1 |
| Tire specifications | 11R22.5 18PR 275/80R22.5 18PR | Fuel tank (volume/material)/Power battery (power/energy type/brand) | 300L |
| Vehicle announcement | / | Vehicle origin | / |
| Tops branding | / | Tank / box dimensions | / |
| Tank/box volume | / | Other optional devices | With sun canopy, airbag type damping driver's seat, electric, electrically heated defrosted exterior mirrors, high roof, electric, hydraulic single floating cylinder body flip, with shroud, 275/80R22.5 18PR, [7-inch MP5 + reversing image + Bluetooth function + navigation + no steering wheel CAN control (optional package)]. |
